DHC
Model | ESR-48V50AH | ESR-48V100AH | ESR-48V200AH |
Combination | 15S1P | 15S1P | 15S1P |
Capacity | 2.4KWh | 4.8KWh | 9.6KWh |
Working voltage range | 40.5-54VDC | 40.5-54VDC | 40.5-54VDC |
Standard Voltage | 48VDC | 48VDC | 48VDC |
Max. charging current | 50A | 50A | 100A |
Max. charging voltage | 54V | 54V | 54V |
Standard discharge current | 50A | 50A | 50A |
Max. discharge current | 100A | 100A | 100A |

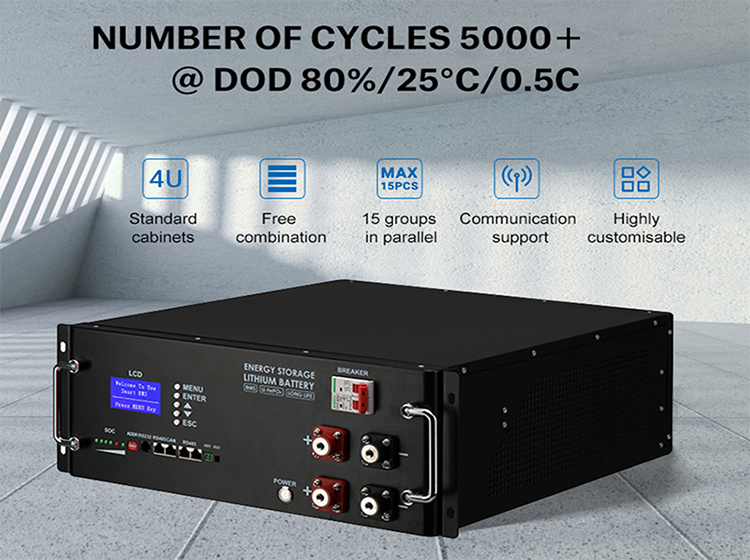

Cycle | 5000+ cycles @DOD 80%/25℃/0.5C | ||
Cooling method | Natural cooling | ||
Installation | Cabinet/Rack Mount | ||
Protection level | IP20 | ||
Maxof parallel | 15PCS | ||
Working humidity | 65±20%RH | ||
Operating temperature | -10~+50℃ | ||
Warranty | 5~10 Years | ||
Communication | Default:RS485/RS232/CAN Optional:WiFi/4G/Bluetooth | ||
Product Size | 440*495*88mm | 440*495*178mm | 440*590*178mm |
Package Size | 555*500*130mm | 555*500*235mm | 480*650*220mm |
Net weight | 25kg | 41kg | 101kg |
Gross weight | 30kg | 49kg | 111kg |
Voltage, capacity, size/color customization, OEM/ODM services can be provided according to customer needs |
Model | ESR-48V50AH | ESR-48V100AH | ESR-48V200AH |
Combination | 15S1P | 15S1P | 15S1P |
Capacity | 2.4KWh | 4.8KWh | 9.6KWh |
Working voltage range | 40.5-54VDC | 40.5-54VDC | 40.5-54VDC |
Standard Voltage | 48VDC | 48VDC | 48VDC |
Max. charging current | 50A | 50A | 100A |
Max. charging voltage | 54V | 54V | 54V |
Standard discharge current | 50A | 50A | 50A |
Max. discharge current | 100A | 100A | 100A |
Cycle | 5000+ cycles @DOD 80%/25℃/0.5C | ||
Cooling method | Natural cooling | ||
Installation | Cabinet/Rack Mount | ||
Protection level | IP20 | ||
Maxof parallel | 15PCS | ||
Working humidity | 65±20%RH | ||
Operating temperature | -10~+50℃ | ||
Warranty | 5~10 Years | ||
Communication | Default:RS485/RS232/CAN Optional:WiFi/4G/Bluetooth | ||
Product Size | 440*495*88mm | 440*495*178mm | 440*590*178mm |
Package Size | 555*500*130mm | 555*500*235mm | 480*650*220mm |
Net weight | 25kg | 41kg | 101kg |
Gross weight | 30kg | 49kg | 111kg |
Voltage, capacity, size/color customization, OEM/ODM services can be provided according to customer needs |
