| 3KW solar wind energy systems | |||
| Product | Model | Quantity | Description |
| Wind turbine generator | ES-H 1kw/48v | 1 | Generator, blade, tail rudder, hood hub |
| 6m tower | Independent tower | 1 | 6m |
| Solar energy panel | Single crystal solar panel 550w | 8 | Size: 2279*1134*35mm |
| Solar energy support | 550w stent | 8 | Customer choice |
| Wind power controller | 1kw/DC48v | 1 | DC: 48v AC: 110v/220v single phase |
| Photovoltaic controller | 48v | 1 | AC: 110v/220v single phase |
| Wind power off-grid inverter | 5kw/220v inverter | 1 | DC 48V input; MPPT intelligent control |
| Colloid cell | 200ah/12v | 8 | Size：530*245*245mm |

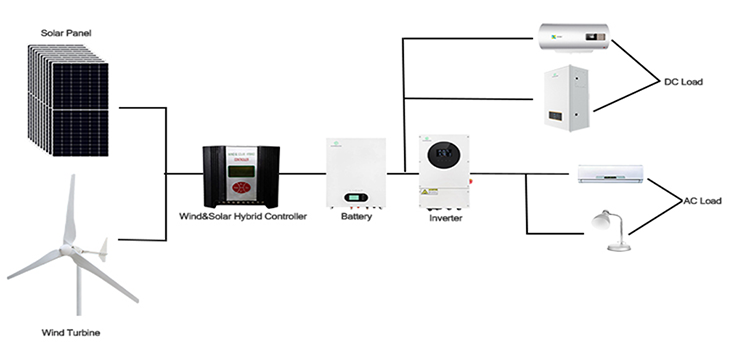

| Wind Turbine > 3 years warranty, 20+ year service life > Advantage: light weight, small volume > Starting wind speed: 2m/s > Rated wind speed: 12m/s > Security wind speed: ≤50m/s The wind power generation part is to use the wind turbine to convert the wind energy into mechanical energy, convert the mechanical energy into electrical energy through the wind generator, then charge the battery through the controller, and supply power to the load through the inverter. |
Solar Panel > Max power: 550w > Size: 2279*1134*35 mm > Glass: 3.2mm Tem pered > 25 years power output guarantee The photovoltaic power generation part uses the photovoltaic effect of the solar panel to convert light energy into electrical energy, then charges the battery, and converts direct current into alternating current through the inverter to supply power to the load. |  |
 | Inverter > Pure sine wave output > IP65 waterproof and dust proof makes the inverter suitable for various working environments The inverter converts the direct current in the battery into a standard 220v alternating current to ensure the normal use of alternating current load equipment. At the same time, it also has an automatic voltage stabilization function, which can improve the power supply quality of the wind-solar hybrid power generation system. |
Battery > Wall-mounted to save space > Standard equipped with LED display, real-time understanding of battery status The battery part is composed of multiple batteries, which play two roles of energy regulation and load balance in the system at the same time. It converts the electrical energy output by the wind power generation system and the photovoltaic power generation system into chemical energy and stores it for use when the power supply is insufficient. |  |
 | Controller > DC 48V input; MPPT intelligent control > Protection Function: Solar reverse charge > protection: Solar reverse connection protection, > Battery-over-charge-protection > Battery-reverse connection protection The control part continuously switches and adjusts the working state of the battery pack according to the changes in the intensity of sunshine, wind force and load. |
Cables > 3 pcs 16mm2*35CM battery cable 4 pcs 16mm2*2M battery connect cable > 4mm2 PV cable 20M 6mm2 wind cable 50M > terminals and MC4 + 1P63A Battery switch |  |
